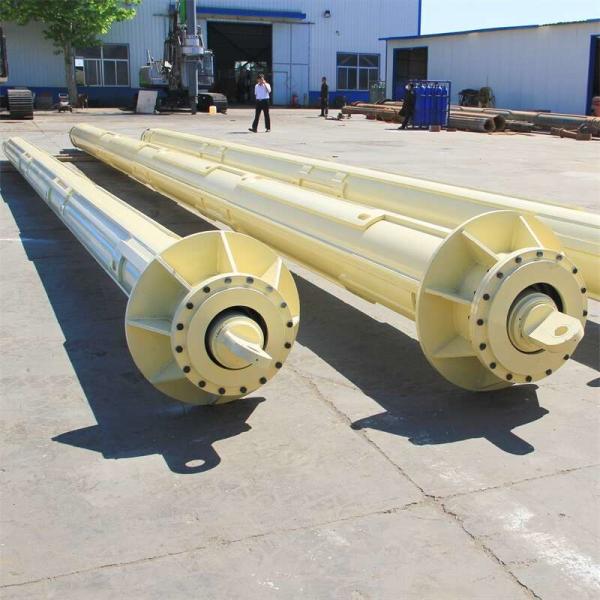

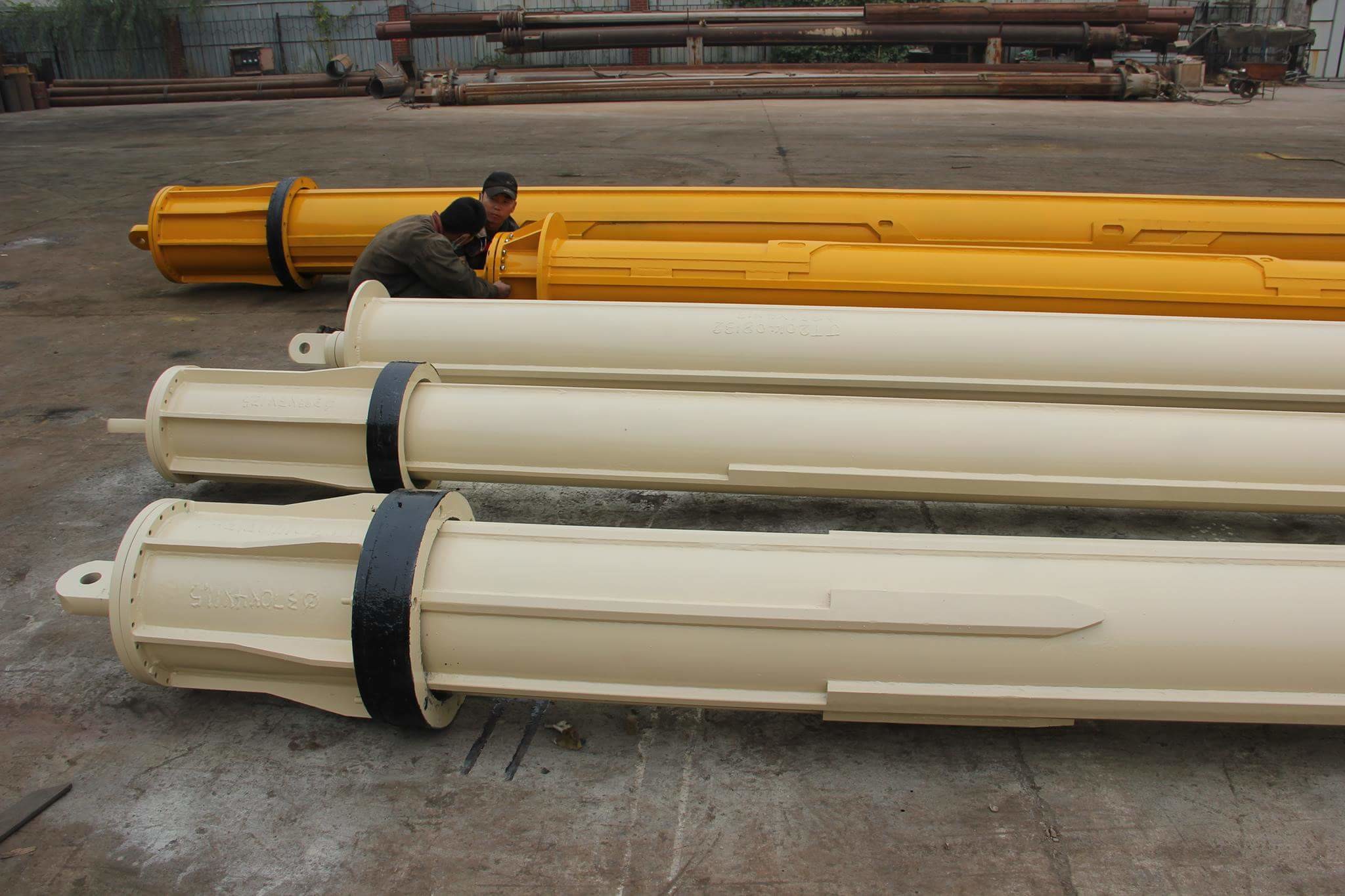

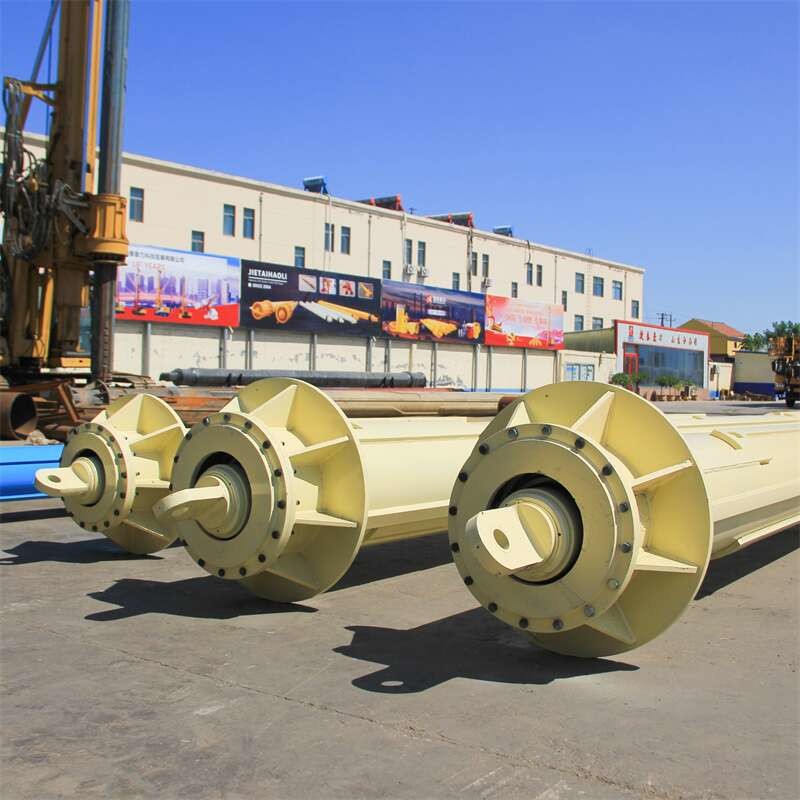

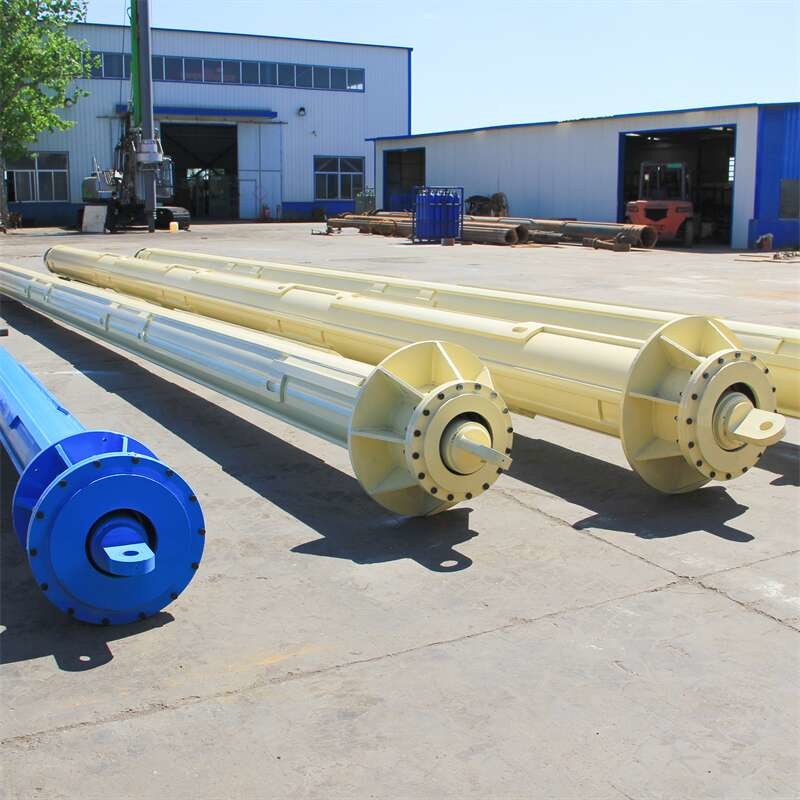

Foundation Piling Tools Kelly Bar BK200 /368/4/36m For Hard Rock Layer Construction
*3 - 6 telescopic tube for drilling depth from 10 - 150 m
*Torque transfer capacity 30 - 500 kN.m
*Drilling diammeter 400-3000mm
Kelly bar is based on domestic rig configuration and condition demand, combined with the home and abroad advanced manufacture technology, supporting domestic and foreign rotary piling rig.
| OEM/ODM | Both |
| Material | Q345B /Q460D / 35CrMo With Special Heat Treatment |
| Manufacture Process | Robot Welding ,Gas Shielded welding , Manual DC Welding |
| Tailored | Round /Square |
Specification
| No. | Diammeter of The First Section | Sections | Key Pressure Type | Length of per section(m) | Drill depth | Torque(KN.M) |
| 1 | ¢299 | 3 | | | Interlocking | 9-12 | 24-45 | 100 -120 |
| 2 | ¢342 | 3 | 4 | | Interlocking | 9 - 12 | 24-45 | 100 -120 |
| 3 | ¢355 | 3 | 4 | | Interlocking | 9 - 14 | 24 - 56 | 100-120 |
| 4 | ¢368 | 3 | 4 | | Interlocking | 9 - 14 | 24 - 56 | 150-180 |
| 5 | ¢377 | 3 | 4 | | Interlocking | 9 - 14 | 24 - 56 | 150-180 |
| 6 | ¢394 | 3 | 4 | | Interlocking | 9 - 15 | 24 - 58 | 180-200 |
| 7 | ¢406 | 3 | 4 | | Interlocking | 9 - 15 | 24 - 58 | 180-200 |
| 8 | ¢419 | 3 | 4 | | Interlocking | 9 - 15 | 24 - 58 | 200-230 |
| 9 | ¢440(445) | 3 | 4 | | Interlocking | 9 - 15 | 24 – 58 | 220-260 |
| 10 | ¢470 (482) | 3 | 4 | | Interlocking | 9 - 16 | 24 – 60 | 220-260 |
| 11 | ¢508 | 3 | 4 | | Interlocking | 9 – 18 | 24 – 68 | 260-360 |
| 12 | ¢530 (540) | 3 | 4 | 5 | Interlocking | 9 – 20 | 32 – 92 | 320-400 |
| 13 | ¢580(575) | 3 | 4 | 5 | Interlocking | 9 – 20 | 32 – 92 | 360-420 |
| 14 | ¢630 | 3 | 4 | 5 | Interlocking | 9 - 22 | 32 - 102 | 400-500 |
Our company founded in 2004, headquartered in Beijing, branch factory in Shouguang, Shandong. The company is mainly engaged in the production and sales of rotary piling kelly bars , drilling tools, rotary piling rig overhaul, rig sales and accessories supply.Over the years we focus on research and development of the production of kelly bars, drill tools, with complete kelly bars fabriction and testing equipments, as well as we own professional research , design, sales and after-sales service team. Our company has a number of self-developed patented products, matched with domestic and abroad brands such as SANY, CRRC, XCMG, Bauer, Soilmec, IMT and other brand rigs , exported to Southeast Asia, the United States, Russia, the Middle East and other countries.
