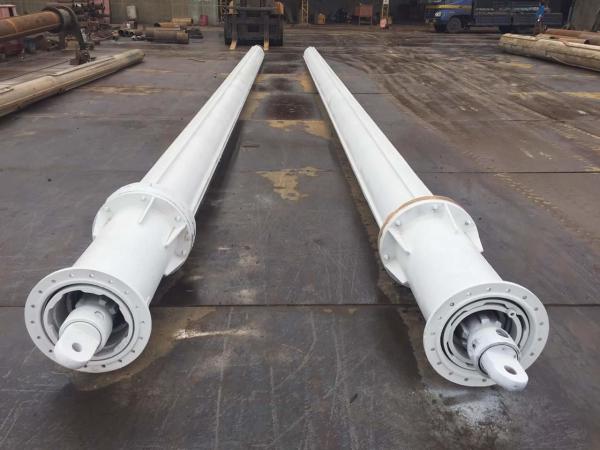

Rotary Kelly Bar Piling Rig Drilling Depth 10-110m

Product Categories

Beijing Jietaihongli Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Rotary Kelly Bar Piling Rig Drilling Depth 10110m
Brand: JTHL
Price: 10000 USD

Brand Name : JTHL

Model Number : 4X 16m

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : USD 10000-USD 50000

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100 sets/ month

Delivery Time : 5-8 work days

Packaging Details : Packaged With Steel Pallet and Aluminium Film

Usage : Foundation Drilling Hole

Type : Interlocking / Frictional

Drilling depth : 20-120m

Material : Q345B / 35CrMo with special heat treatment

Contact Now

Application:Be used for Rotary piling rig drilling tools dig hole in rock or soil layer.

Type:Telescopic Kelly Bar 2-6 sections

Lock Type:Interlocking / Frictional / Combined kelly bar

Drilling Depth :10-110m

Drilling Diammeter:400-3000mm

OEM/ODM	Both
Material	Q345B /Q460D / 35CrMo With Special Heat Treatment
Manufacture Process	Robot Welding ,Gas Shielded welding , Manual DC Welding
Tailored	Round /Square

Specification

No.	Diammeter of The First Section	Sections			Key Pressure Type	Length of per section(m)	Drill depth	Torque(KN.M)
1	¢299	3			Interlocking	9-12	24-45	100 -120
2	¢342	3	4		Interlocking	9 - 12	24-45	100 -120
3	¢355	3	4		Interlocking	9 - 14	24 - 56	100-120
4	¢368	3	4		Interlocking	9 - 14	24 - 56	150-180
5	¢377	3	4		Interlocking	9 - 14	24 - 56	150-180
6	¢394	3	4		Interlocking	9 - 15	24 - 58	180-200
7	¢406	3	4		Interlocking	9 - 15	24 - 58	180-200
8	¢419	3	4		Interlocking	9 - 15	24 - 58	200-230
9	¢440(445)	3	4		Interlocking	9 - 15	24 – 58	220-260
10	¢470 (482)	3	4		Interlocking	9 - 16	24 – 60	220-260
11	¢508	3	4		Interlocking	9 – 18	24 – 68	260-360
12	¢530 (540)	3	4	5	Interlocking	9 – 20	32 – 92	320-400
13	¢580(575)	3	4	5	Interlocking	9 – 20	32 – 92	360-420
14	¢630	3	4	5	Interlocking	9 - 22	32 - 102	400-500

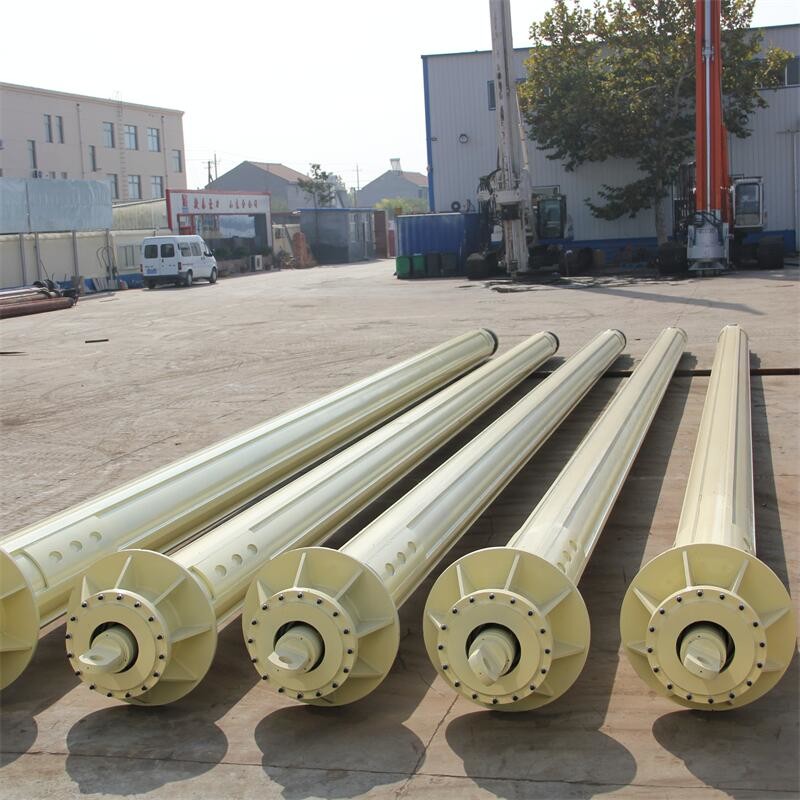

Rotary Kelly Bar Piling Rig Drilling Depth 10-110m

Andy Zhang wsap 0086-18366335191
